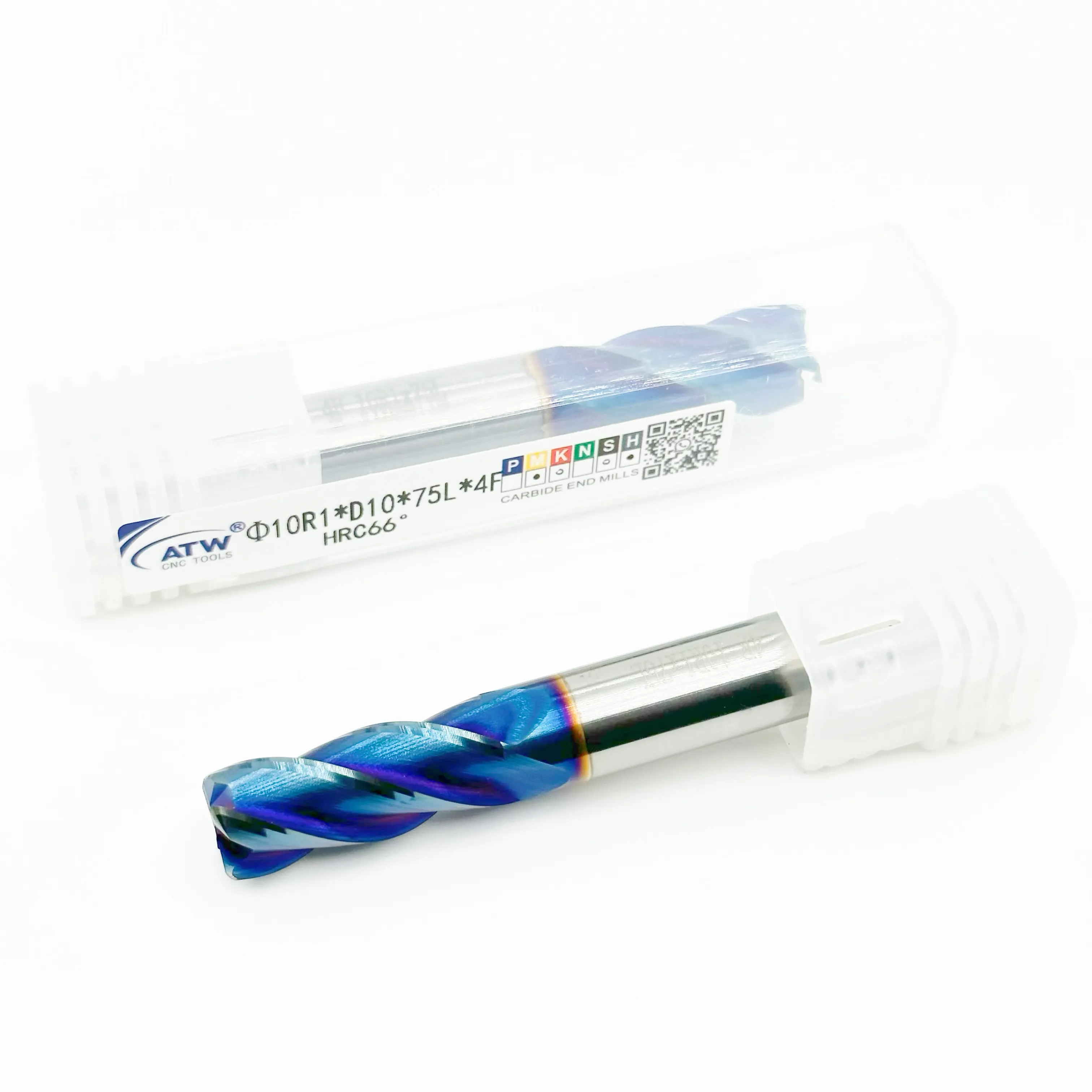

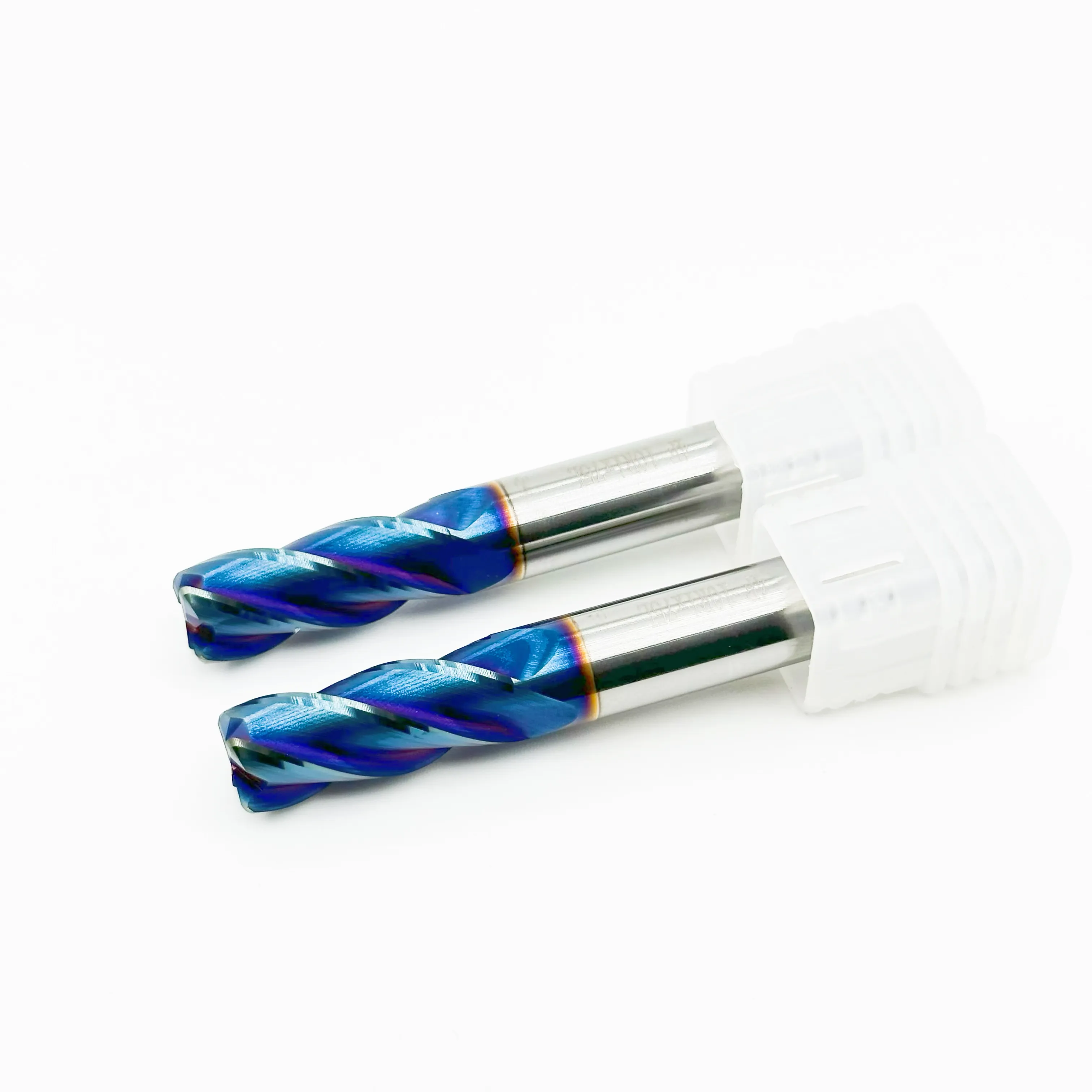

This 4-flute blue nano-coated corner radius end mill is engineered for high-performance CNC machining in demanding materials like stainless steel, titanium alloys, and hardened steels (HRC50–65). Featuring a micro-grain tungsten carbide substrate (0.4–1μm) and PVD blue nano coating, it reduces friction by 35% and extends tool life by 25% compared to standard tools. The 35° helix angle ensures smooth chip evacuation and minimal vibration, ideal for high-speed operations up to 600m/min in 3D profiling and deep cavity milling. Available in diameters from Φ0.5mm to Φ20mm with extended shank options (50L–150L), it supports aerospace molds, automotive components, and precision engraving. Rigorous testing guarantees ±0.01mm tolerance and Ra <0.2μm surface finishes, while dry cutting compatibility reduces coolant costs by 20%.
General
Industry-specific attributes
|
Place of Origin
|
MADE IN CHINA
|
|
Brand Name
|
ATW CNC TOOLS
|
|
Certification
|
ISO Quality Mnagement System Certificate 9001 ISO Environmental Management System Certificate 14001
|
|
Minimum Order Quantity
|
10PCS
|
|
Packaging Details
|
One plastic pipe pack one piece, ten per group and carton outside.
|
|
Delivery Time
|
5-7 Days
|
|
Supply Ability
|
100,000
|
|
Material
|
Tungsten Solid Carbide
|
|
Coating
|
Nano TiSiN Coating
|
|
Other Attributes
|
|
Place of Origin
|
China
|
|
Warranty
|
3 years
|
|
Customized Support
|
OEM, ODM
|
|
Brand Name
|
ATW
|
|
Model Number
|
D10R1*D10*100L*4F
|
|
Material
|
Tungsten Solid Carbide
|
|
Product Name
|
Tungsten Solid Carbide Corner Radius Endmill 4F HRC56
|
|
Usage
|
CNC Milling Machining
|
|
Advantages
|
High Process Performance
|
|
After Warranty Service
|
Online support
|
|
Packaging and Delivery
|
|
PACKAGE
|
CARTON
|
1. Superior Durability: Blue nano coating combined with ultra-fine carbide resists abrasion and thermal stress, doubling lifespan in high-speed dry cutting environments.
2. Enhanced Efficiency: Optimized geometry enables 25% faster feed rates while maintaining ±0.01mm accuracy for aerospace-grade precision.
3. Wide Compatibility: Ideal for HRC50–65 materials, including stainless steel, titanium, and mold steel, ensuring versatility in automotive and aerospace industries.
4. Advanced Chip Control: Tapered design and large flute capacity prevent clogging, critical for deep-pocket operations.
5. Cost Savings: Dry cutting compatibility reduces coolant use, lowering operational costs by 20%, while extended tool life cuts replacement frequency by 40%.
|
Product name
|
66HRC tungsten solid carbide corner radius endmill
|
|
Product blade number
|
4 blades
|
|
Product coating
|
Nano blue coating
|
|
Suitable material
|
45°～55° stainless steel
|
|
Suitable equipment
|
CNC machining center, engraving machine and other milling machines
|
Matters needing attention
Not suitable for processing aluminum alloy, plastic parts, key machine, hand drill, ordinary milling machine, please confirm the use of demand, if you have questions, please consult customer service, we will recommend you the right processing plan.
1. Buyers need to know the milling cutter and operating instructions Before using the tool, please measure the tool yaw. When the tool yaw accuracy exceeds 0.01mm, please correct it before cutting. 2. The shorter the length of the tool extension chuck, the better. If the tool extension is longer, it is necessary to reduce the speed, feed speed or cutting amount. 3. In the cutting, if abnormal vibration or sound is generated, please reduce the speed and cutting amount until the situation improves. 4. Steel cooling with spray and jet can improve the effect of milling cutter. 5. Note: It is not suitable for low-speed machines such as bench drill and electric drill.
1
What is the shipping method?
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
2
What is your lead time?
It depends on the order quantity and the season you place the order.Usually we can ship within 5-7 days for small quantity,
and about 30 days for large quantity.
With 15 years of industry expertise, ATW uses high-quality carbide materials to ensure tools with exceptional hardness, wear resistance, and heat resistance, suitable for both precision machining and heavy-duty tasks.
4
What are the advantages of us?
1. Extended Tool Life: Superior wear resistance reduces frequent replacements, lowering operational costs.
2. High-Speed Compatibility: Engineered for aggressive feed rates and RPMs, boosting productivity without compromising precision.
3. Exceptional Surface Finish: Razor-sharp edges and minimal vibration ensure smooth finishes and tight tolerances.
4. Versatility: Seamlessly transition between roughing and finishing across materials like aluminum, composites, and superalloys.
5. Cost Efficiency: Long-lasting durability maximizes ROl by minimizing tool expenditure and machine downtime.
5
How can I purchase ATW end mills?
Browse our official website catalog for direct orders, or contact our sales team for bulk pricing, technical specifications, and logistics support.
6
Are coating options available?
Yes. ATW offers coatings like TiAIN (Titanium Aluminum Nitride) to enhance heat resistance, reduce friction, and optimize performance in high-speed machining.
Contact ATW's experts for guidance on selecting the perfect tool for your application!
Company Advantages
· ATW CNC bullnose milling cutter delivers incomparable design concepts.
· The product has undergone rigorous testing during the trial production phase.
· Our customers owing to these features extensively like these products.
Company Features
· DONGGUANG ULTRA MICRO HARDWARE MECHINERY CO.,LTD has grown into a highly qualified manufacturer and supplier focusing on R&D, design, and production of bullnose milling cutter.
· As the statistics shown to us, bullnose milling cutter is getting more popular among the customers at home and abroad.
· Imported from the foreign countries, our advanced machine can guarantee the strict process of bullnose milling cutter. Inquire online!
Application of the Product
ATW CNC's bullnose milling cutter is widely used in multiple industries and fields.
ATW CNC has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.
