Solid Endmill FEDEX - - ATW CNC

Product details of the solid endmill

Product Introduction

The production of ATW CNC solid endmill conforms to the industry standards. It is manufactured under the strict quality contril of our factory. Every procedure for production of solid endmill reaches international standards.

Product Information

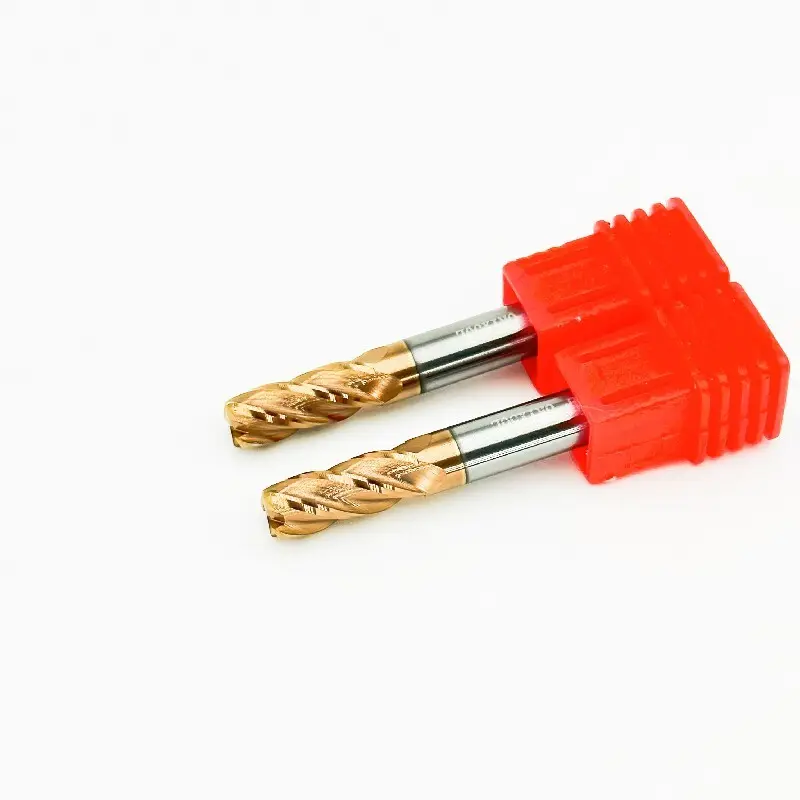

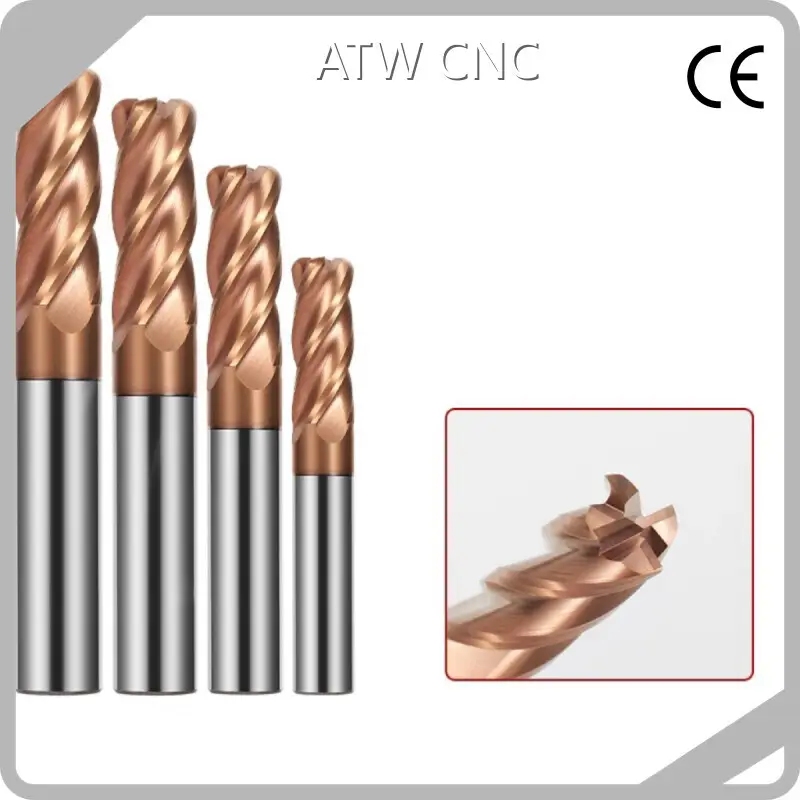

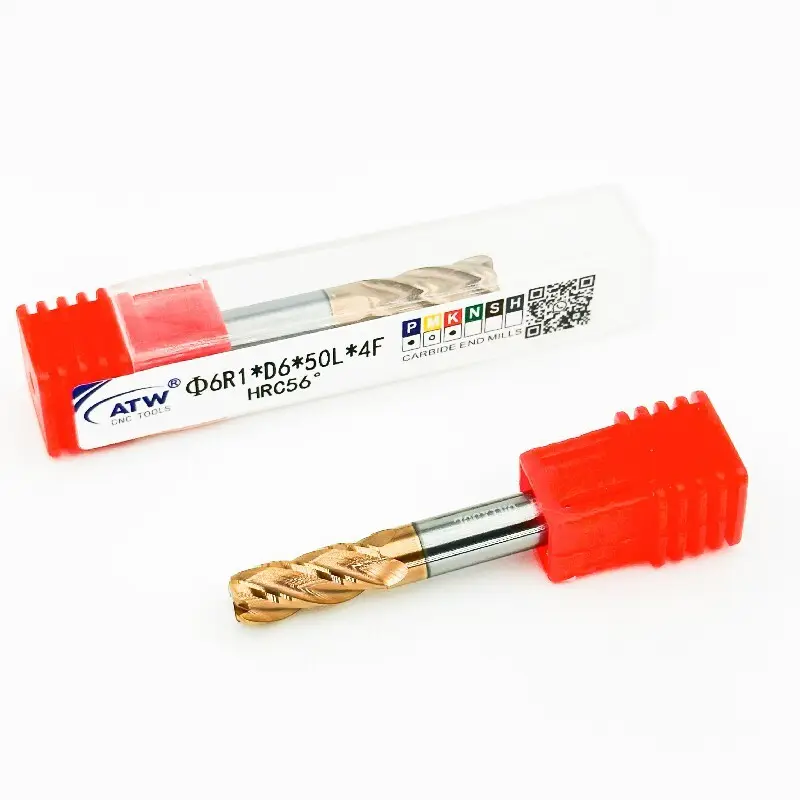

Premium 4 Flute Bronze-Coated

Tungsten Carbide Ball Nose End Mill Engineered for high-performance machining, this 4-flute ball nose end mill combines cutting-edge technology with rugged durability. Crafted from ultra-fine grain tungsten carbide and enhanced with a bronze TiAIN coating, it delivers exceptional heat resistance (up to 800°C) and wear resistance, extending tool life by 50% in demanding applications like hardened steel (HRC62), mold steel (SKD-11, S136), and alloy machining

key Features&Benefits

1. 4-Flute Ball Nose Design: Optimized for high-speed CNC milling, providing smooth finishes on complex contours, 3D profiling, and slotting. The R-corner geometry reduces chipping and ensures precision in mold making and automotive parts.

2. Bronze TiAIN Coating: Advanced heat-resistant layer minimizes friction, prevents edge degradation, and supports dry or wet machining conditions. Ideal for high-efficiency material removal at small depths of cut .

3. High Rigidity & Stability: Negative rake angle and reinforced helical flutes enhance rigidity, reducing vibration during heavy-duty cutting. Short flute length design maximizes tool strength for hardened materials.

4. Cost-Effective Performance: Achieve 2x higher metal removal rates compared to standard end mills, reducing production time and tooling costs.

Detail description

Matters needing attention

Not suitable for processing aluminum alloy, plastic parts, key machine, hand drill, ordinary milling machine, please confirm the use of demand, if you have questions, please consult customer service, we will recommend you the right processing plan.

Instructions for use

1. Buyers need to know the milling cutter and operating instructions Before using the tool, please measure the tool yaw. When the tool yaw accuracy exceeds 0.01mm, please correct it before cutting. 2. The shorter the length of the tool extension chuck, the better. If the tool extension is longer, it is necessary to reduce the speed, feed speed or cutting amount. 3. In the cutting, if abnormal vibration or sound is generated, please reduce the speed and cutting amount until the situation improves. 4. Steel cooling with spray and jet can improve the effect of milling cutter. 5. Note: It is not suitable for low-speed machines such as bench drill and electric drill.

Company Advantage

• Our products are of complete specifications and can also be customized according to the needs of manufacturers. So, we can provide customers with the most professional custom services.
• Our hardware products have a wide range of application. They can be used in any working environment. Moreover, they have high cost performance.
• Since established, we have spent years of efforts in the development and production of the hardware. So far, we have mature craftsmanship and experienced workers to help us achieve a highly efficient and reliable business cycle
• ATW CNC's location enjoys traffic convenience and has complete infrastructures around. All these provide good conditions for our company's rapid development.
• Our global manufacturing and sales network have spread to and other overseas countries. Inspired by the high marks by the customers, we are expected to expand our sales channels and provide more considerate service.
Welcome to ATW CNC. We only present some information of textile products. If you want to know more detailed information, you can contact us at any time.
